CES utilizes both unique and patented technologies to help our customers in their drilling projects.
We at CES strive to provide the most technologically advanced products through investment in R&D and personnel training.
Product Details
Listed below are some of the products we have to offer to our clients. Please check on any of the product to expand.

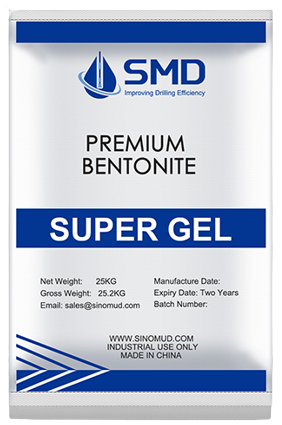

Drilling Bentonite
Bentonite SUPER-GEL is a high-yield, 200 mesh sodium bentonite with a special dry polymer additive that mainly used in trenchless industry with very high viscosity. It is used as a primary filter-cake-building, filtration-control and suspension agent in freshwater systems, and has application in all water-base mud systems.
Advantages
- Stabilizes the borehole
- Improves hole-cleaning capacity of drilling fluids
- Reduces fluid loss into the formation
- Is environmentally responsible

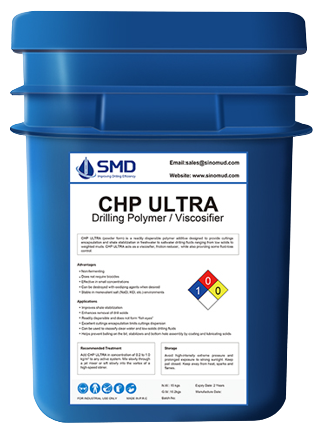

Drilling Polymer CHP
Drilling Polymer CHP (powder form) is a readily dispersible polymer additive designed to provide shale stabilization in freshwater to saltwater drilling fluids ranging from low solids muds. CHP acts as a viscosifier, friction reducer, while also providing some fluid-loss control. Drilling Polymer CHP forms a protective polymer film on the drill pipe and bit as well as on the walls of the bore hole which helps to provide lubrication when drilling in troublesome formations. It is ideally suited for use in horizontal directional drilling, water well, mining, and tunneling applications.
The function of Drilling polymer CHP
- Super high viscosity
- Easily mix, improve lubricity
- Prevent the swelling and dispersion of shale and clay
- Increase the core recovery rate
- Enhance removal of drill solids
- Can be used to viscosity clear-water and low-solid drilling fluids
- Dosage:02 to 1.0 kg/m³
- Package:15kg/drum
CALGON
CALGON(Sodium hexametaphosphate), Is one of the most widely used water treatment agent, is necessary for industrial water, domestic water and waste water disposal. It is soluble in water, the aqueous solution is alkaline and the PH value of 1% aqueous solution is 9.7. It can be gradually hydrolyzed into phosphite in water, which makes it have a good ability of complexing metal ions, which can be complexed with calcium, magnesium, iron and some other metal ions to form a soluble complex. It is only used to overcome the res water phenomenon previously, and has been slowly developed to be used in many other fields, such as, water treatment, food processing, mining, drilling, printing and dyeing, refractories industries.
Sodium hexametaphosphate uses in water treatment includes water for dye production, titanium dioxide production, water for printing and dyeing, water for color film copy cleaning, water for chemical industry, water softener for pharmaceutical and reagent production and water treatment agents for industrial circulating cooling water. It can also be used as corrosion inhibitor, flotation agent, dispersing agent, high temperature binder, dyeing aid, etc… Also applied to the surface treatment, such as, antirust agent, detergent additive, cement hardening accelerator, pulp diffuser to increase permeability, as well as wash utensils and chemical fibers to remove iron ions in the pulp. In the petroleum industry, it is used to prevent the rust of drill pipes and control the viscosity of mud during the oil drilling process.
Drilling Weighting Agents
CES provides weighting agents to impart density to all water base and invert-emulsion drilling fluids. Weighting agents are used to control formation pressures, prevent formation caving and facilitate the pulling of dry pipe.
The following are the products which CES offers as Weighting Agents.
Weighting Agents
- API grade Bentonite
- Barite - This drilling grade Barite is used to increase the density of the fluid.
- Calcium Carbonate (milled) F/M/C
- Calcium Carbonate F/M/C
- Hematite—This weighting agent has a high specific gravity, resulting in lower solids content and often higher ROP compared to barite mud.
Dispersants/Deflocculants
Thinners are specially formulated and chemically modified compounds of lignite or lignin. It controls rheology and fluid loss, extends temperature limits, emulsifies oil, reduces flocculation and stabilizes water base drilling fluids. It finds application in fresh water and sea water systems. It provides a thin, thick wall cake accompanied with low fluid loss.
Products
- Chrome Lignite
- Potassium Lignite
- Lignite Powder
- Chrome Free Lignosulfonate
- Causticized Lignite
- Causticized PotassiumLignite
- Amine treated Lignite
- Ferro Chrome Lignosulfonate
- Chrome Lignosulfonate
Shale Stabilizers
These additives are amine based shale inhibitors which are formulated to stabilize reactive shales & clays while drilling with water based drilling fluids. These products are highly effective in inhibiting clay swelling and hydration of cuttings, preventing bit balling and reducing torque and drag.
Benefits
- Compatible with most Water Based Systems.
- Non Toxic and Bio- Degradable.
- Temperature Stable upto 204°C.
- Prevents Bit Balling,
- Reduces Torque and Drag.
- Reduces dilution rates.
- Improved wellbore stability& shale inhibition
Drilling Mud Lubricants
These lubricants are the special type of additives when mixed in drilling fluids, impart lubricating properties into metal & metal to borehole contacts under extreme pressure conditions. These are specially used in directional & crooked holes, deeper holes and packed hole where frictional forces tend to be relatively high to reduce the loss of mechanical power.
Products
- Extreme Pressure Lubricant (Water Based)
- Extreme Pressure Lubricant (Oil Based)
Benefits
- Improve wellbore stability and shale inhibition.
- Improved lubricity
- Improved filtration control.
- Reduced dilution rate and mud consumption.
- Reduce bit balling potential.
- Low Toxicity.
- Faster Drilling
Pipe Freeing Agents
These additives are specifically designed to assist in freeing stuck pipes. It lubricates and dehydrates filter cake from water- based fluids to aid in creating cracks in the mud cake to help alleviate differentially stuck drill pipes.
Products
- Spotting fluid—Non weighted
- Spotting Fluids (Weighted)
- Asphaltic Based Spotting Fluid
Benefits
- Improves hydraulic pressure communication in all directions.
- It helps to release differential stuck pipe conditions.
- Saves drilling time and cost of a well.
- Thermally stable at temperature upto 400’F (205’C)
Surfactant for Spacer Fluid
These additives are specialty surfactants used in formulation of spacers used before cementing of oil wells drilled with oil based muds. It is designed to clean up and displace oil and synthetic based muds and solids for better cementation.
Products
- Anionic Surfactant
- Cationic Surfactant
Benefits
- Facilitate effective removal of oil/water based muds in a better lamination.
- Facilitates for better cementing in oil/gas wells
- Can be dispersed in heavy brines to provide the means for a weighted spacer.
Defoamers
An effective way to disrupt foam formation is to introduce a foam control surfactant into the system. A defoamer or antifoam functions by spreading over the gas/ liquid interfaces, thereby preventing foam forming materials from coming to the surface and providing a surface layer which will not sustain foam
Benefits
- Bio detergent, non -toxic and non- hazardous.
- Effective in a pH range 5.5 to 11.
- Effective in small concentrations.
- Miscible or highly dispersible in sea water.
- Compatible with other mud chemicals.
- Reduces chances of blowout.
Fluid Loss Reducing Agent
This is an advance polymer based HTHP fluid, loss reducing agent/additive, It stabilizes the rheological properties and works well in fresh water and salt water mud systems. It is available in solid as well as liquid forms.
Products
- CMC LV—Carboxy Methyl Cellulose (CMC LV)
- PAC LV - Poly Anionic Cellulose (PAC LV)
- Resinated Lignite
- Guar Gum (modified)
- Modified Starch/ Pregelatinized Starch
- Improves filter cake quality and reduces wall cake thickness.
Benifits
- Increases temperature stability.
- Safely lowers HTHP fluid loss.
- Improves filter cake quality and reduces wall cake thickness.
Drilling Polymers
These are high molecular weight polymers that control fluid loss and increase viscosity.
Products
- PHPA 1— Partially Hydrolysed Poly Acrylamide (PHPA).
- Gum—Xantham Gum
- BEN X 1—Bentonite Extender
- GLYCOL— Cloud Point Glycol
Benifits
- Improve wellbore stability and shale inhibition.
- Improved Lubricity
- Improved filtration control.
- Reduced dilution rate and mud consumption.
- Reduce bit balling potential.
- Low toxicity.
- Faster Drilling
Viscosifiers
CES offers an extensive suite of viscosifiers designed to increase the viscosity of water-, oil-, and synthetic-base drilling fluids. We provide a variety of clay, polymer, and biopolymer viscosifiers to improve the hole-cleaning and solids-suspension capabilities of drilling fluids.
Products
- Ben X 1—Bentonite Extender
- CMC HV 1— Carboxy Methyl Cellulose
- PAC R 1— Poly Anionic Cellulose
- GUM 1—Xantham Gum XCD Polymer
- CLAY 1—Attapulgite Clat (Salt Water Clay)
Benifits
- Improve wellbore stability and shale inhibition.
- Improved Lubricity
- Improved filtration control.
- Reduced dilution rate and mud consumption.
- Reduce bit balling potential.
- Low toxicity.
Emulsifiers for Oil Based Mud
PRIMARY EMULISIFIER
These additives are used to produce a highly stable invert emulsion fluid with excellent emulsion stability.
SECONDARY EMULISIFIER
These additives are multi-functional which provide higher stability to primary emulsifier &imparts preferential wetting of solids by the continuous oil phase.
EMULISIFIER
It provides good and stable emulsification imparts sufficient oil wetting characteristics of solids and high tolerance for contaminants. The product also works well with all of the commonly used internal phase salt solutions.
Benifits
- Improves the electrical stability of oil based mud.
- Helps to remain high temperature, high pressure filtrate in a water- free state.
- Effective over a wide temperature range, oil/water ratios & mud weights.
- Works well to formulate stable emulsions in wide range of commonly used base oils, diesel and other mineral oils.
- Helps maintain the rheological properties of the fund.
